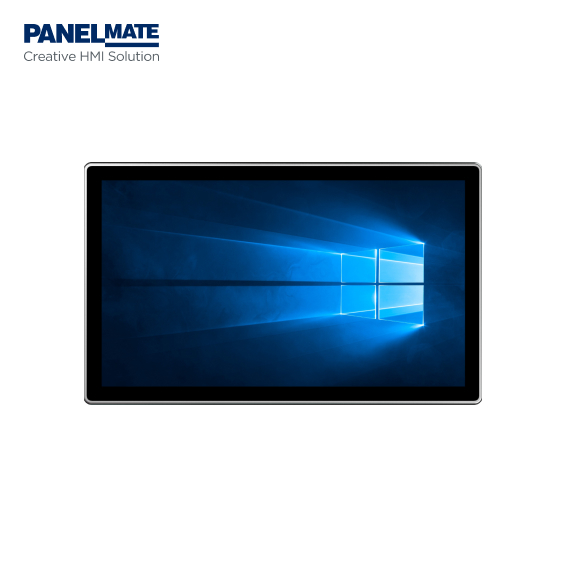

21.5 Inch Embedded Industrial Panel PC with IP65 for Industrial Application Panelmate 1

21.5 Inch Embedded Industrial Panel PC with IP65 for Industrial Application Panelmate 2

21.5 Inch Embedded Industrial Panel PC with IP65 for Industrial Application Panelmate 3

21.5 Inch Embedded Industrial Panel PC with IP65 for Industrial Application Panelmate 4

21.5 Inch Embedded Industrial Panel PC with IP65 for Industrial Application Panelmate

This 21.5 inch industrial touch panel embedded PC features a large aluminum fins design for enhanced reliability and heat dissipation. Equipped with 2xIntel i210AT Gigabit network cards, 4xUSB ports, and extendable WIFI/4G capabilities, this PC offers seamless connectivity and efficient performance for industrial applications.

フロントパネル/バックカバー:

Aluminium-magnesium alloy

画面タイプ:

10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",27"

Processor:

Intel Celeron J6412(don’t support Win XP,Win 7)/3855U/ 3865U and Intel skylake i3/i5/i7 multiple CPU options

スクリーンの種類:

Resistive/Capacitive/Non-touch

モデル番号:

Resistive: IPC211215 Capacitive touch: IPC22215 Non-touch: IPC24215

原産地:

China

支払い:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

リードタイム:

To be negotiated

運送:

Express/Sea/Air/Land

問い合わせ

download

EN_IPC2XXXX_industrial panel PC_Datasheet

レビューを書く

CPU

Intel® Celeron® J6412、Intel® Core™ 6/7/10/11/12/13th i3/i5/i7

Bios

AMI UEFI 64Mbit

Chipset

Intel®Soc

Memory

DDR4-3200 Max 64G

Storage

1 x mSATA+2 x M.2

Network (LAN)

2 x 1000MRJ45 with surge protection/3xRJ45（processor Intel® Core™ 10/11/12/13th

Audio

Realtek ALC662VD audio controller,support 5.1 channels

COM

2xRS232/RS485 with surge protection，RS485 support automatic flow control

USB

4xUSB3.0/2.0

Expansion Slot

1xminiPcle X1，Support 4G LTE/WIFI/BT with Sim card slot

Rear I/O

Intel® Celeron® J6412：1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground Intel® Core™ 6/7th ：1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground Intel® Core™ 10/11/12/13th：1xHDMI/3xRJ45/4xUSB/2xCOM/DC IN/Reset/Ground

Input Voltage

DC 12~36V

電源

30W（Intel® Celeron® J6412、Intel® Core™ 6/7th）；112W （Intel® Core™ 10/11/12/13th）

Video Port

HDMI

Open Size (WxH/mm)

519mmx311mm（20.43"x12.24"）

Dimension (WxHxD/mm)

530.5mmx322.5mmx63.5mm（20.89"x12.70"x2.5"）

Mounting

Panel mount,Wall-mounted,VESA mounting

画面タイプ

21.5" FHD TFT

解像度

1920x1080

Colors

16.7M

Active Area (WxH/mm)

476.64mmx268.11mm（18.77"x10.56"）

Backlight

LED

MTBF（hour）

30000hrs

Pixel Pitch（HxV）

0.24825x0.24825

Luminance(cd/m2)

250cd/m2

Contrast Ratio

3000:1

Viewing Angle

（L）85/（R）85/（U）85/（D）85

タッチ式

Single point resistive touchscreen <000000> Multi-point capacitive touchscreen <000000> Non-touch screen Light Transmission

Light Transmission

>85%

Controller

USB interface

Driver Support

Windows7, Window8, Windows10, Windows11, Linux, etc（Intel® Celeron® J6412，Intel®Core™ 10th or above don't support Win7）

Multi-touch

10 points

Surface Hardness

Resistive touchscreen：Mohs' Number> = 3H; Capacitive touchscreen：Mohs' Number 7H

操作温度

-20 ~ 70℃

保管温度

-30 ~ 70℃

Relative Humidity

5~95%(Non condensation)

Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms@with HDD;2Grms@with SSD, follow IEC 60068-2-64

EMC

CE/FCC Class A

RAMの種類

8GB

ディスプレイ解像度

1280x800

産業オートメーションシステムを向上させる Panelmate 21.5 インチ産業用パネル PC 産業オートメーション、HMI、制御アプリケーション向けに設計された、堅牢で高性能なオールインワンソリューションです。耐久性のあるアルミニウムマグネシウム合金ケース、幅広い電圧入力 (9 ～ 36 V)、複数のタッチスクリーンオプションを備え、過酷な環境でも信頼性を実現します。
