10.4 Inch Industrial Control Panel With Operating temperature 0℃ to 55℃ For Industry Automation 1

10.4 Inch Industrial Control Panel With Operating temperature 0℃ to 55℃ For Industry Automation 2

10.4 Inch Industrial Control Panel With Operating temperature 0℃ to 55℃ For Industry Automation 3

10.4 Inch Industrial Control Panel With Operating temperature 0℃ to 55℃ For Industry Automation 4

10.4 Inch Industrial Control Panel With Operating temperature 0℃ to 55℃ For Industry Automation

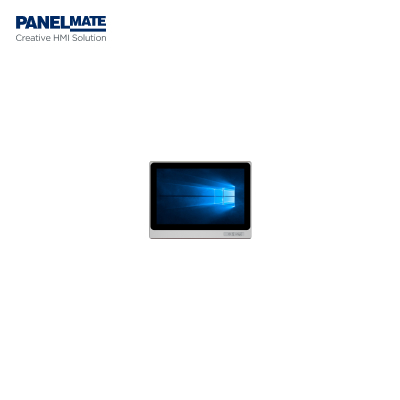

This 10.4 Inch Embedded Industrial Touch Screen LCD Industrial Monitor is designed for use in industrial settings, offering IP65 protection against dust and water damage. The custom industrial display provides a reliable and durable solution for critical monitoring and control applications.

Ön panel/arka kapak:

Aluminium-magnesium alloy

Ekran tipi:

10.1",10.4",11.6",12.1",12.2",15",15.6",17",17.3",18.5",19",21.5",24",27"

Ekran türü:

Resistive/Capacitive/Non-touch

Model Numarası:

Dirençli: IDD21104 Kapasitif dokunmatik: IDD22104 Dokunmatik olmayan: IDD24104

Menşe yeri:

Tsina

Ödemeler:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Kurşun Zamanı:

To be negotiated

Nakliye:

Express/Sea/Air/Land

soruşturma

download

EN_IDD2XXXX_Industrial Monitor_Datasheet (2)

Bir değerlendirme yazın

Control button

Set contrast ratio and luminance via OSD at the back cover

Housing

Front panel <000000> back cover:Aluminium-magnesium alloy,Grounding isolation protection

Rear I/O

VGA & DVI & HDMI & USB

Input Voltage

Phoenix terminal：DC 12~36V

Güç

Open Size (WxH/mm)

253mm x 210.6mm（9.96" x 8.29"）

Dimension (WxHxD/mm)

264mm x 221.6mm x 57.5mm（10.39" x 8.72" x 2.26"）

Mounting

Panel mounted;Wall-mounted;VESA;Desktop

Ekran tipi

10.4" WXGA TFT

çözüm

1024 X 768

Colors

16.7M

Active Area (WxH/mm)

211.2mm x 158.4mm（8.31" x 6.24"）

Backlight

LED

MTBF（hour）

30000hrs

Pixel Pitch（HxV）

0.1695 x 0.1695

Luminance(cd/m2)

350cd / m2

Contrast Ratio

900:1

Viewing Angle

(L)85 / (R)85 / (U)85 / (D)85

Dokunma türü

Single point resistive touchscreen <000000> Multi-point capacitive touchscreen <000000> Non-touch screen

Light Transmission

>85%

Controller

USB

Driver Support

Windows 7, Windows 8, Windows 10/11, Linux, CE

Multi-touch

10 points

Surface Hardness

Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H

Çalışma sıcaklığı

-20 ~ 70℃

Depolama sıcaklığı

-30 ~ 70℃

Relative Humidity

5~95%(Non condensation)

Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64

EMC

CE/FCC Class A

LCD Tipi

10.4" SVGA TFT

Elevate your industrial automation systems with the 10.4 Inch Industrial Panel Monitor with Touchscreen LCD , engineered to thrive in the toughest conditions. Designed for factories, production lines, and outdoor installations, this IP65-rated control panel display combines crystal-clear visibility, rugged reliability, and intuitive touch responsiveness to keep your operations running smoothly.

Crisp, Bright Display

350 cd/m² high-brightness TFT LCD with 1024x768 resolution guarantees readability even under direct sunlight or glare.
1024x768 Full HD LCD – Unmatched sharpness for critical industrial workflows.

Front-Access USB Port/Switch/Power Indicator Light

Ubicación : Conveniently positioned on the lower bezel.

Integrated USB HUB Function

Strong Anti-interference

Wide voltage input range ( 12-36V DC ) with ±10% tolerance for unstable power grids.
Durable, IP65-Rated : Sealed against dust and moisture, ensuring reliable operation in wet or dirty conditions.
Exceeds CE EMC requirements for global deployment.

IP65 Protection
Dustproof, waterproof, and built to withstand vibrations, shocks, and temperature extremes
(-20°C to 60°C).

10-Point Multi-Touch Control

Responsive projected capacitive touchscreen supports fast, accurate inputs with gloves or bare hands—ideal for high-traffic automation workflows.

Versátil Connectivity for Industrial Demands

Supported Operating Systems

Flexible Installation for Any Environment

Built-In, VESA, and VESA Desktop Mounting Solutions

Tailored Solutions for Every Industry

Designed to meet the rigorous demands of diverse sectors, combines rugged durability, precision touch control, and seamless integration to revolutionize automation across industries
