9V-36V VGA USB Full HD LCD Endüstriyel Otomasyon İçin 11.6 İnç Endüstriyel Dokunmatik Monitör

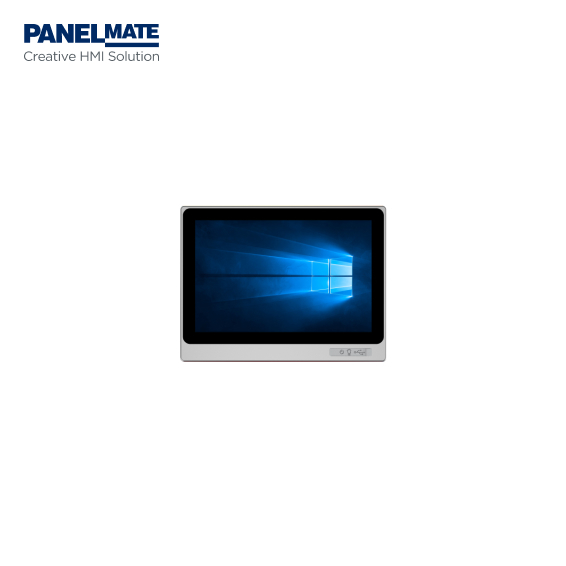

This 11.6 Inch Embedded Industrial Touch Screen LCD Industrial Monitor is designed for use in industrial settings, offering IP65 protection against dust and water damage. The custom industrial display provides a reliable and durable solution for critical monitoring and control applications.

    Oops ...!

    Ürün verisi yok.

    ana sayfaya git
    EN_IDD2XXXX_Industrial Monitor_Datasheet (2)
    EN_IDD2XXXX_Industrial Monitor_Datasheet (2)
    Control button
    Set contrast ratio and luminance via OSD at the back cover
    Housing
    Front panel <000000> back cover:Aluminium-magnesium alloy,Grounding isolation protection
    Rear I/O
    VGA & DVI & HDMI & USB
    Input Voltage
    Phoenix terminal:DC 12~36V
    Güç
    5W
    Open Size (WxH/mm)
    299mm x 203mm(11.77" x 7.99")
    Dimension (WxHxD/mm)
    310mm x 214mm x 55.5mm(12.20" x 8.43" x 2.19")
    Mounting
    Panel mounted;Wall-mounted;VESA;Desktop
    Ekran tipi
    11.6" WXGA TFT
    çözüm
    1920 X 1080
    Colors
    16.7M
    Active Area (WxH/mm)
    256.32mm x 144.18mm(10.09" x 5.68")
    Backlight
    LED
    MTBF(hour)
    30000hrs
    Pixel Pitch(HxV)
    0.1335x0.1335
    Luminance(cd/m2)
    250cd / m2
    Contrast Ratio
    1000:1
    Viewing Angle
    (L)85 / (R)85 / (U)85 / (D)85
    Dokunma türü
    Single point resistive touchscreen <000000> Multi-point capacitive touchscreen <000000> Non-touch screen
    Light Transmission
    >85%
    Controller
    USB
    Driver Support
    Windows 7, Windows 8, Windows 10/11, Linux, CE
    Multi-touch
    10 points
    Surface Hardness
    Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H
    Çalışma sıcaklığı
    -20 ~ 70℃
    Depolama sıcaklığı
    -30 ~ 70℃
    Relative Humidity
    5~95%(Non condensation)
    Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
    Vibration
    Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
    EMC
    CE/FCC Class A
    LCD Tipi
    11.6" SVGA TFT


    Elevate your industrial automation systems with the  11.6 Inch Industrial Panel Monitor with Touchscreen LCD , engineered to thrive in the toughest conditions. Designed for factories, production lines, and outdoor installations, this IP65-rated control panel display combines crystal-clear visibility, rugged reliability, and intuitive touch responsiveness to keep your operations running smoothly.



    Crisp, Bright Display


    • 250 cd/m² high-brightness TFT LCD with 1920x1080 resolution guarantees readability even under direct sunlight or glare.

    • 1920x1080 Full HD LCD – Unmatched sharpness for critical industrial workflows.


    Front-Access USB Port/Switch/Power Indicator Light

    Beliggenhed : Conveniently positioned on the lower bezel.


    3 (7)

    Integrated USB HUB Function


    4 (7)

    Strong Anti-interference

    • Wide voltage input range ( 12-36V DC ) with ±10% tolerance for unstable power grids.

    • Durable, IP65-Rated  : Sealed against dust and moisture, ensuring reliable operation in wet or dirty conditions.

    • Exceeds  CE EMC requirements for global deployment.


    5 (6)

    IP65 Protection
    Dustproof, waterproof, and built to withstand vibrations, shocks, and temperature extremes
    (-20°C to 60°C).


    6 (5)

    10-Point Multi-Touch Control

    Responsive projected capacitive touchscreen supports fast, accurate inputs with gloves or bare hands—ideal for high-traffic automation workflows.


    7 (7)

    Alsidig   Connectivity for Industrial Demands



    8 (5)

    Supported Operating Systems

    9 (6)

    Flexible Installation for Any Environment

    Built-In, VESA, and VESA Desktop Mounting Solutions

    10 (13)

    Tailored Solutions for Every Industry

    Designed to meet the rigorous demands of diverse sectors, combines rugged durability, precision touch control, and seamless integration to revolutionize automation across industries

    12 (8)
